PSSC6

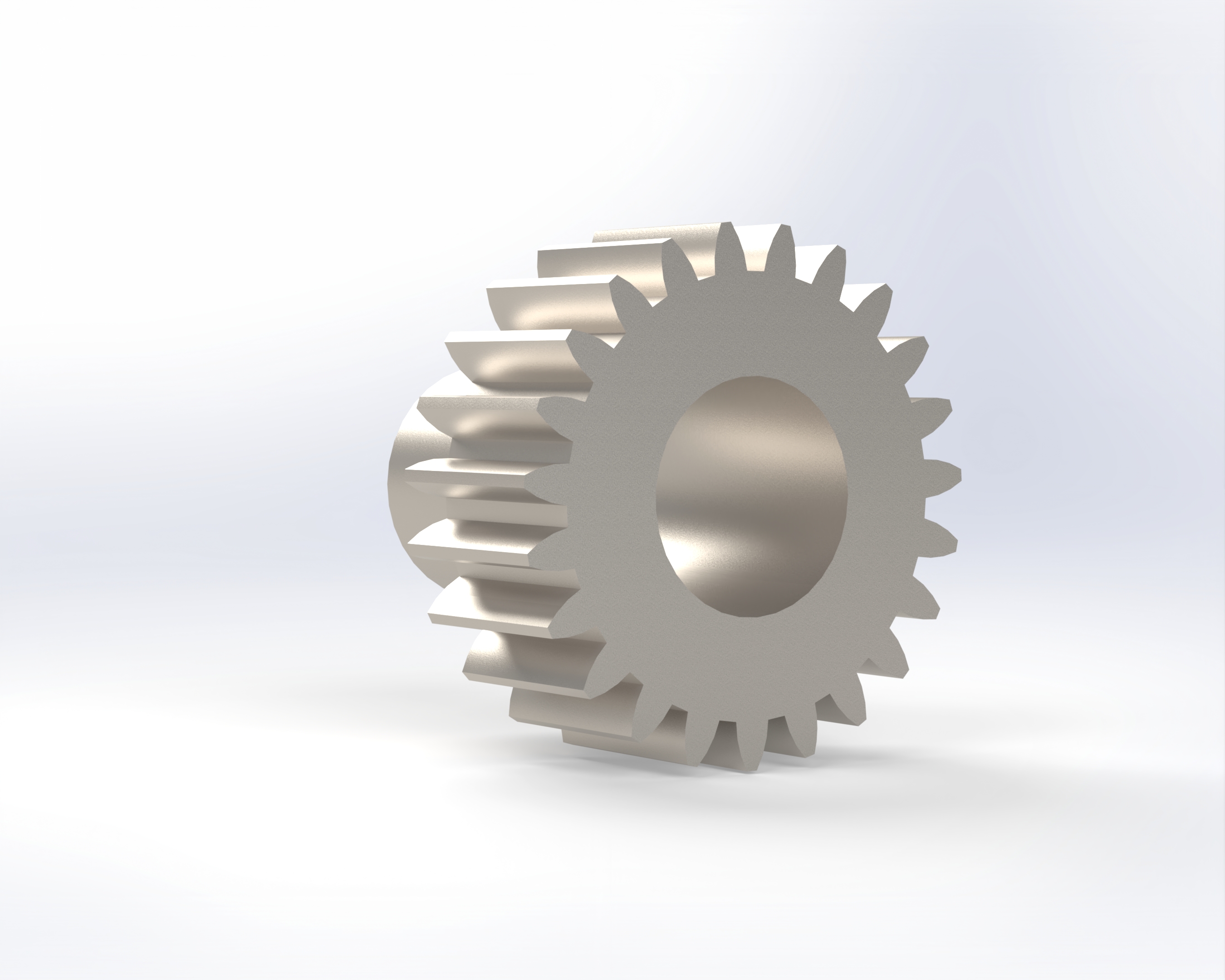

Pignons pour arbres lisses ou frettes
Type A, avec alésage lisse
- Acier
- 20CrMnTi
- Traitement thermique
- Cémentation-trempe
- Dureté de surface
- 58-62 HRC
- Classe de précision
- DIN 6
- Denture
- Droite, rectifée
Contactez-nous si le plan que vous recherchez ne figure pas dans la liste ci-dessous
Filtrer les résultats
Réinitialiser
|
Référence
|
Fig
|
M
|
Z
|
d
|
d*PI
|
da
|
d1
|
dN
|
b1
|
b2
|
u
|
t
|
2D | 3D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PSSC6-A-M2-Z20-000 | A | 2 | 20 | 40 | - | 44 | 22 | 30 | 28 | 30.0 | - | - | STEP | |
| PSSC6-A-M2-Z22-000 | A | 2 | 22 | 44 | - | 48 | 22 | 30 | 28 | 30.0 | - | - | STEP | |
| PSSC6-A-M2-Z25-000 | A | 2 | 25 | 50 | - | 54 | 22 | 30 | 28 | 30.0 | - | - | STEP | |
| PSSC6-A-M2-Z28-000 | A | 2 | 28 | 56 | - | 60 | 22 | 30 | 28 | 30.0 | - | - | STEP | |
| PSSC6-A-M2-Z32-000 | A | 2 | 32 | 64 | - | 68 | 22 | 30 | 28 | 30.0 | - | - | STEP | |
| PSSC6-B-M2-Z20-000 | B | 2 | 20 | 40 | - | 44 | 22 | 36 | 28 | 56.0 | - | - | STEP | |
| PSSC6-B-M2-Z22-000 | B | 2 | 22 | 44 | - | 48 | 22 | 36 | 28 | 56.0 | - | - | STEP | |
| PSSC6-B-M2-Z25-000 | B | 2 | 25 | 50 | - | 54 | 16 | 30 | 28 | 54.0 | - | - | STEP | |
| PSSC6-B-M2-Z25-001 | B | 2 | 25 | 50 | - | 54 | 22 | 36 | 28 | 56.0 | - | - | STEP | |
| PSSC6-B-M2-Z28-000 | B | 2 | 28 | 56 | - | 60 | 22 | 36 | 28 | 56.0 | - | - | STEP | |
| PSSC6-B-M2-Z32-000 | B | 2 | 32 | 64 | - | 68 | 16 | 30 | 28 | 54.0 | - | - | STEP | |
| PSSC6-B-M2-Z32-001 | B | 2 | 32 | 64 | - | 68 | 22 | 36 | 28 | 56.0 | - | - | STEP | |
| PSSC6-B-M2-Z32-002 | B | 2 | 32 | 64 | - | 68 | 32 | 55 | 28 | 65.0 | - | - | STEP | |
| PSSC6-B-M2-Z36-000 | B | 2 | 36 | 72 | - | 76 | 40 | 62 | 28 | 65.0 | - | - | STEP | |
| PSSC6-B-M2-Z40-000 | B | 2 | 40 | 80 | - | 84 | 32 | 55 | 28 | 65.0 | - | - | STEP | |
| PSSC6-B-M2-Z40-001 | B | 2 | 40 | 80 | - | 84 | 40 | 62 | 28 | 65.0 | - | - | STEP | |
| PSSC6-B-M3-Z22-000 | B | 3 | 22 | 66 | - | 72 | 22 | 36 | 28 | 56.0 | - | - | STEP | |
| PSSC6-B-M3-Z22-001 | B | 3 | 22 | 66 | - | 72 | 32 | 55 | 28 | 65.0 | - | - | STEP | |
| PSSC6-B-M3-Z25-000 | B | 3 | 25 | 75 | - | 81 | 40 | 62 | 28 | 65.0 | - | - | STEP | |
| PSSC6-B-M3-Z28-000 | B | 3 | 28 | 84 | - | 90 | 22 | 36 | 28 | 56.0 | - | - | STEP | |
| PSSC6-B-M3-Z28-001 | B | 3 | 28 | 84 | - | 90 | 32 | 55 | 28 | 65.0 | - | - | STEP | |
| PSSC6-B-M3-Z32-000 | B | 3 | 32 | 96 | - | 102 | 40 | 62 | 28 | 65.0 | - | - | STEP | |
| PSSC6-B-M4-Z20-000 | B | 4 | 20 | 80 | - | 88 | 32 | 55 | 40 | 75.0 | - | - | STEP | |
| PSSC6-B-M4-Z20-001 | B | 4 | 20 | 80 | - | 88 | 40 | 62 | 40 | 75.0 | - | - | STEP | |
| PSSC6-B-M4-Z25-000 | B | 4 | 25 | 100 | - | 108 | 32 | 55 | 40 | 75.0 | - | - | STEP | |
| PSSC6-B-M4-Z25-001 | B | 4 | 25 | 100 | - | 108 | 40 | 62 | 40 | 75.0 | - | - | STEP | |
| PSSC6-B-M4-Z25-002 | B | 4 | 25 | 100 | - | 108 | 55 | 80 | 40 | 80.0 | - | - | STEP | |
| PSSC6-B-M4-Z32-000 | B | 4 | 32 | 128 | - | 136 | 55 | 80 | 40 | 80.0 | - | - | STEP | |
| PSSC6-B-M5-Z21-000 | B | 5 | 21 | 105 | - | 115 | 55 | 80 | 50 | 90.0 | - | - | STEP | |
| PSSC6-B-M5-Z25-000 | B | 5 | 25 | 125 | - | 135 | 55 | 80 | 50 | 90.0 | - | - | STEP | |
| PSSC6-B-M6-Z21-000 | B | 6 | 21 | 126 | - | 138 | 55 | 80 | 60 | 100.0 | - | - | STEP | |
| PSSC6-B-M6-Z25-000 | B | 6 | 25 | 150 | - | 162 | 55 | 80 | 60 | 100.0 | - | - | STEP |
