HCI9

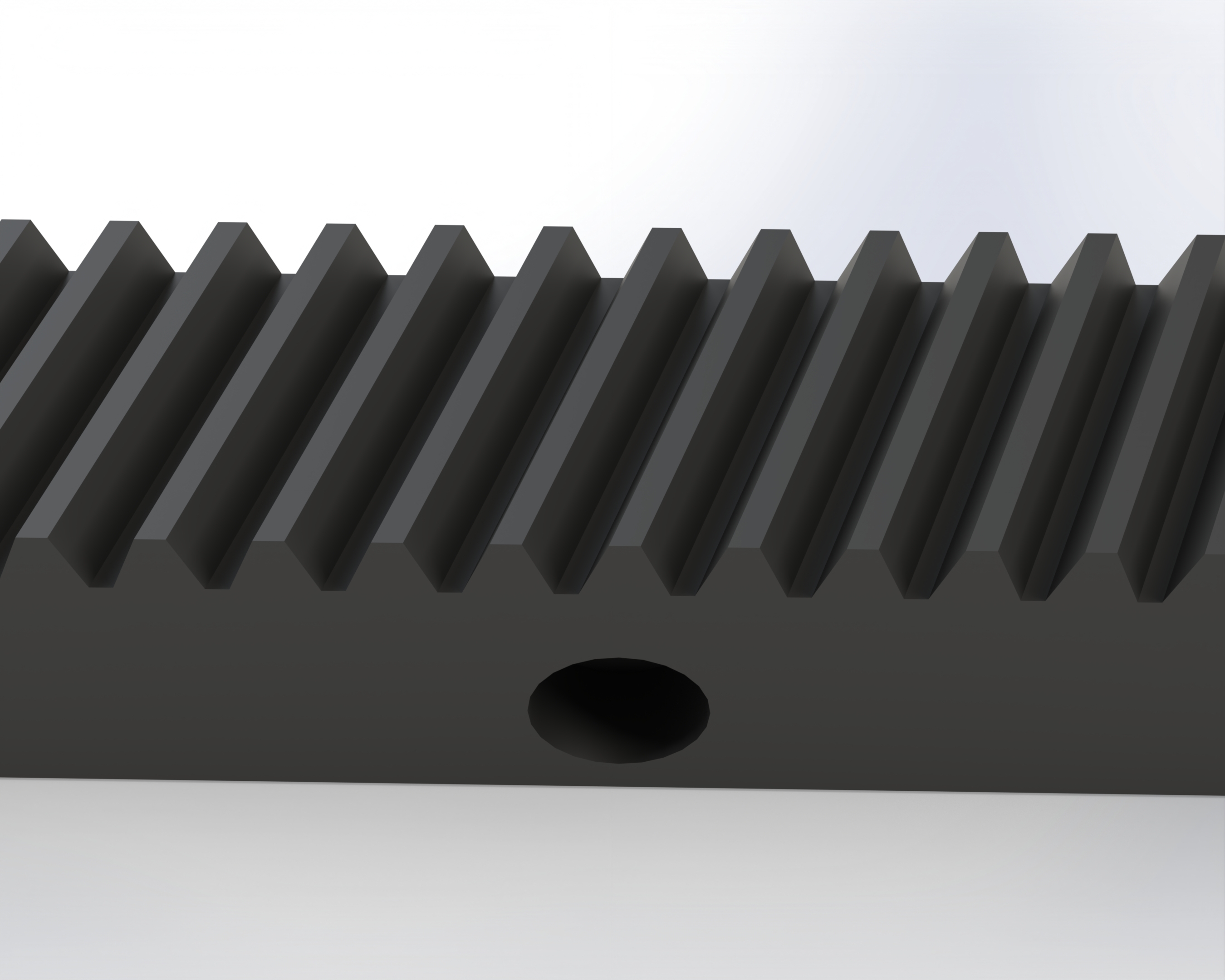

Crémaillères hélicoïdales trempées
- Acier
- 42CrMo
- Traitement thermique
- Trempe par induction (denture)
- Dureté de surface
- 52 HRC
- Classe de précision
- DIN 10
- Denture
- Taillée
- Faces
- Fraisées
- Semelle
- Rectifiée
Contactez-nous si le plan que vous recherchez ne figure pas dans la liste ci-dessous
Filtrer les résultats
Réinitialiser
|
Référence
|
M(1)
|
L
|
L2
|
Z(2)
|
A
|
B
|
B0
|
C
|
D
|
H(3)
|
B1
|
G1
|
G2
|
F
|
C0
|
E
|
G3
|
CPE(4)
|
2D | 3D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M2-HCI9-1000-H1-000 | 2 | 1000.00 | 8.5 | 150 | 24 | 24 | 22 | 62.50 | 125 | 8 | 8 | 7 | 11 | 7 | 31.7 | 936.6 | 5.7 | - | STEP | |
| M2-HCI9-500-H1-000 | 2 | 500.00 | 8.5 | 75 | 24 | 24 | 22 | 62.50 | 125 | 4 | 8 | 7 | 11 | 7 | 31.7 | 436.6 | 5.7 | - | STEP | |
| M3-HCI9-1000-H1-000 | 3 | 1000.00 | 10.3 | 100 | 29 | 29 | 26 | 62.50 | 125 | 8 | 9 | 10 | 15 | 9 | 35.0 | 930.0 | 7.7 | - | STEP | |
| M3-HCI9-500-H1-000 | 3 | 500.00 | 10.3 | 50 | 29 | 29 | 26 | 62.50 | 125 | 4 | 9 | 10 | 15 | 9 | 35.0 | 430.0 | 7.7 | - | STEP | |
| M4-HCI9-1000-H1-000 | 4 | 1000.00 | 13.8 | 75 | 39 | 39 | 35 | 62.50 | 125 | 8 | 12 | 10 | 15 | 9 | 33.3 | 933.4 | 7.7 | - | STEP | |
| M4-HCI9-500-H1-000 | 4 | 506.67 | 13.8 | 38 | 39 | 39 | 35 | 62.50 | 125 | 4 | 12 | 10 | 15 | 9 | 33.3 | 433.0 | 7.7 | - | STEP | |
| M5-HCI9-1000-H1-000 | 5 | 1000.00 | 17.4 | 60 | 49 | 39 | 34 | 62.50 | 125 | 8 | 12 | 14 | 20 | 13 | 37.5 | 925.0 | 11.7 | - | STEP | |
| M5-HCI9-500-H1-000 | 5 | 500.00 | 17.4 | 30 | 49 | 39 | 34 | 62.50 | 125 | 4 | 12 | 14 | 20 | 13 | 37.5 | 425.0 | 11.7 | - | STEP | |
| M6-HCI9-1000-H1-000 | 6 | 1000 | 20.9 | 50 | 59 | 49 | 43 | 62.50 | 125 | 8 | 16 | 18 | 26 | 17 | 37.5 | 925.0 | 15.7 | - | STEP | |
| M6-HCI9-500-H1-000 | 6 | 500.00 | 20.9 | 25 | 59 | 49 | 43 | 62.50 | 125 | 4 | 16 | 18 | 26 | 17 | 37.5 | 425.0 | 15.7 | - | STEP | |
| M8-HCI9-1000-H1-000 | 8 | 960.00 | 28.0 | 36 | 79 | 79 | 71 | 60.00 | 120 | 8 | 25 | 22 | 33 | 21 | 120.0 | 720.0 | 19.7 | - | STEP | |
| M8-HCI9-500-H1-000 | 8 | 480.00 | 28.0 | 18 | 79 | 79 | 71 | 60.00 | 120 | 4 | 25 | 22 | 33 | 21 | 120.0 | 240.0 | 19.7 | - | STEP |
