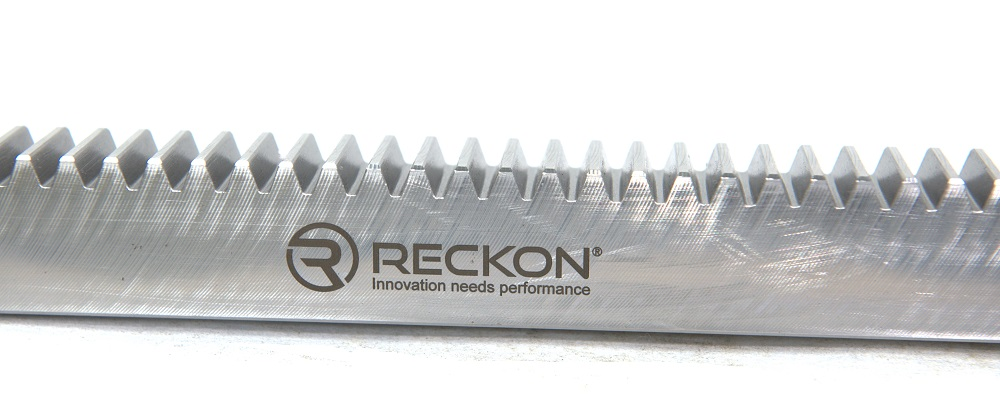

| Références | M(1) | L | L2 | Z(2) | A | B | B0 | C | D | H(3) | B1 | G1 | G2 | F | C0 | E | G3 |
CPE(4) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M1.5-H-C45-ISO9-500-H1 | 1.5 | 500.00 | 6 | 100 | 17 | 17 | 15.5 | 62.50 | 125 | 4 | 8 | 6 | 9.5 | 7 | 31.7 | 436.6 | 5.7 | 0.042 |
| M1.5-H-C45-ISO9-1000-H1 | 1.5 | 1000.00 | 6 | 200 | 17 | 17 | 15.5 | 62.50 | 125 | 8 | 8 | 6 | 9.5 | 7 | 31.7 | 936.6 | 5.7 | 0.042 |
| M2-H-C45-ISO9-500-H1 | 2 | 500.00 | 8.5 | 75 | 24 | 24 | 22 | 62.50 | 125 | 4 | 8 | 7 | 11 | 7 | 31.7 | 426.6 | 5.7 | 0.044 |
| M2-H-C45-ISO9-1000-H1 | 2 | 1000.00 | 8.5 | 150 | 24 | 24 | 22 | 62.50 | 125 | 8 | 8 | 7 | 11 | 7 | 31.7 | 936.6 | 5.7 | 0.044 |
| M3-H-C45-ISO9-500-H1 | 3 | 500.00 | 10.3 | 50 | 29 | 29 | 26 | 62.50 | 125 | 4 | 9 | 10 | 15 | 9 | 35.0 | 430.0 | 7.7 | 0.046 |
| M3-H-C45-ISO9-1000-H1 | 3 | 1000.00 | 10.3 | 100 | 29 | 29 | 26 | 62.50 | 125 | 8 | 9 | 10 | 15 | 9 | 35.0 | 930.0 | 7.7 | 0.046 |
| M4-H-C45-ISO9-500-H1 | 4 | 506.67 | 13.8 | 38 | 39 | 39 | 35 | 62.50 | 125 | 4 | 12 | 10 | 15 | 9 | 33.3 | 433.0 | 7.7 | 0.048 |
| M4-H-C45-ISO9-1000-H1 | 4 | 1000.00 | 13.8 | 75 | 39 | 39 | 35 | 62.50 | 125 | 8 | 12 | 10 | 15 | 9 | 33.3 | 933.4 | 7.7 | 0.048 |
| M5-H-C45-ISO9-500-H1 | 5 | 500.00 | 17.4 | 30 | 49 | 39 | 34 | 62.50 | 125 | 4 | 12 | 14 | 20 | 13 | 37.5 | 425.0 | 11.7 | 0.050 |
| M5-H-C45-ISO9-1000-H1 | 5 | 1000.00 | 17.4 | 60 | 49 | 39 | 34 | 62.50 | 125 | 8 | 12 | 14 | 20 | 13 | 37.5 | 925.0 | 11.7 | 0.050 |
| M6-H-C45-ISO9-500-H1 | 6 | 500.00 | 20.9 | 25 | 59 | 49 | 43 | 62.50 | 125 | 4 | 16 | 18 | 26 | 17 | 37.5 | 425.0 | 15.7 | 0.055 |
| M6-H-C45-ISO9-1000-H1 | 6 | 1000 | 20.9 | 50 | 59 | 49 | 43 | 62.50 | 125 | 8 | 16 | 18 | 26 | 17 | 37.5 | 925.0 | 15.7 | 0.055 |
| M8-H-C45-ISO9-500-H1 | 8 | 480.00 | 28.0 | 18 | 79 | 79 | 71 | 60.00 | 120 | 4 | 25 | 22 | 33 | 21 | 120.0 | 240.0 | 17.7 | 0.060 |
| M8-H-C45-ISO9-1000-H1 | 8 | 960.00 | 28.0 | 36 | 79 | 79 | 71 | 60.00 | 120 | 8 | 25 | 22 | 33 | 21 | 120.0 | 720.0 | 17.7 | 0.060 |
Toutes dimensions en mm. Autres tailles et modules disponibles sur demande. Plans 2D/3D disponibles sur demande
Chaque modèle est disponible aussi sans trou. Remplacer "H1" dans la référence par "H0".
(1) : M = Module / (2) : Z = nombre de dents / (3) : H = nombre de trous / (4) : CPE = erreur de pas cumulée sur 300mm
